Model :CDW-15A OEM/ODM: Available MOQ :1PCS Payment :T/T, L/C or Credit-card Lead Time: 5-7 days Certification :CE-EMC, CE-LVD, RoHS, ISO9001
PRODUCT OVERVIEW:
CDW-15A Support RS485/4-20mA/0-5V/0-10V/NB-IoT/LoRa/WIFI/ Ethernet and other signal output to meet different environmental requirements. Wireless transmission, no wiring, low power consumption, stable performance.
SPECIFICATIONS:
Item | Technical Specification |
Range | 0-30%（RS485),0-25%(Analog signal) |
Accuracy | ±3%FS@25℃ |
Supply | 10-30VDC |
Output | 4-20mA,0-5V,0-10V,RS485，NB-IOT,LORAWAN,4G,Ethernet |
Power Consumption | <0.15W |
Warm Up Time | 3min |
Response Time | <15s |
Temperature Drift | ≤0.2%FS/℃ |
Stability | <±2%fs |
Repeatability | <±1%fs |
Operating Temperature | -20℃-+50℃@15-80%RH |
Storage | -40-60℃@20%-90%RH |
Shell material | ABS |
ADDITIONAL FEATURES AND BENEFITS:
It is simple in structure, easy to install and maintain;
Good stability, can adapt to a variety of harsh environmental conditions;
The change of oxygen concentration can be quickly sensed and the measurement result can be given in time;
Low energy consumption, suitable for use in battery-powered or energy limited situations；
The general structure is relatively simple, and maintenance and calibration work is relatively easy to carry out；

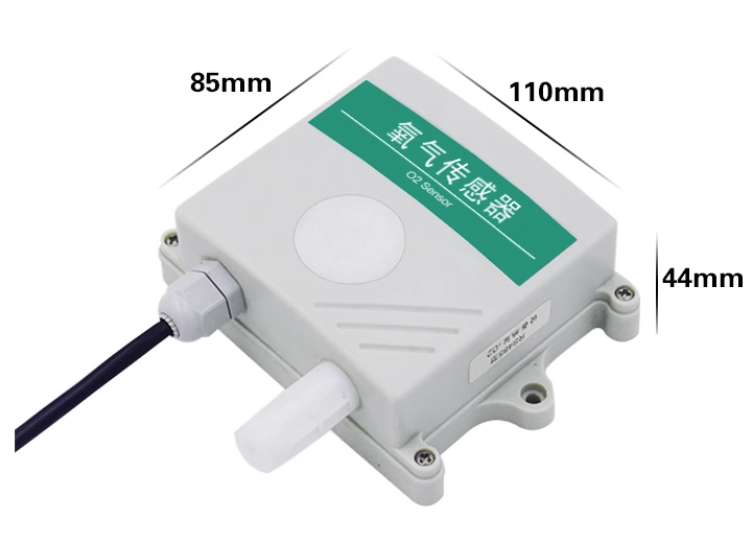

INSTALLATION AND SIZE：

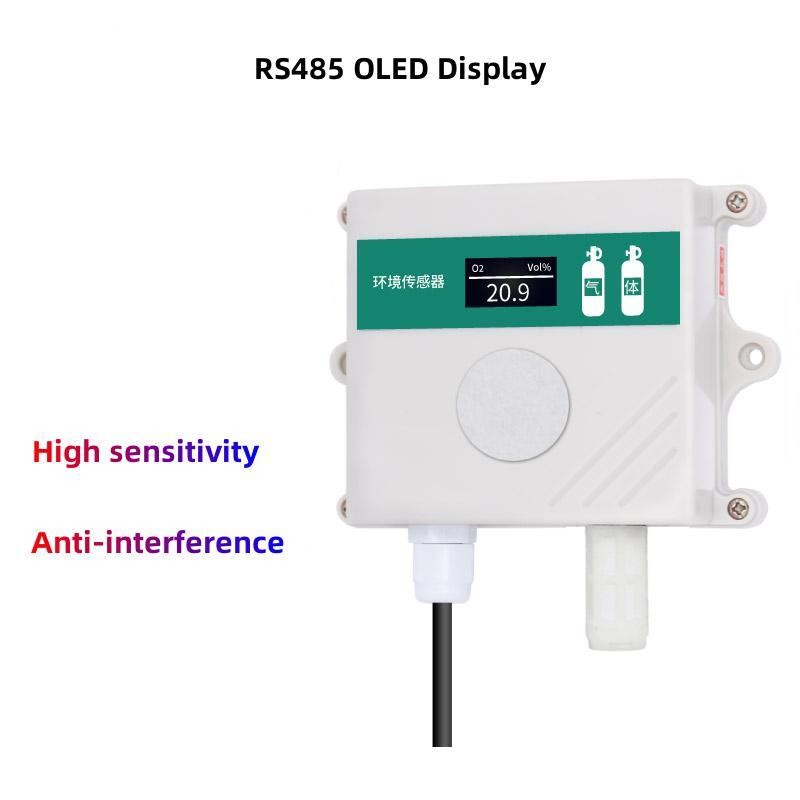

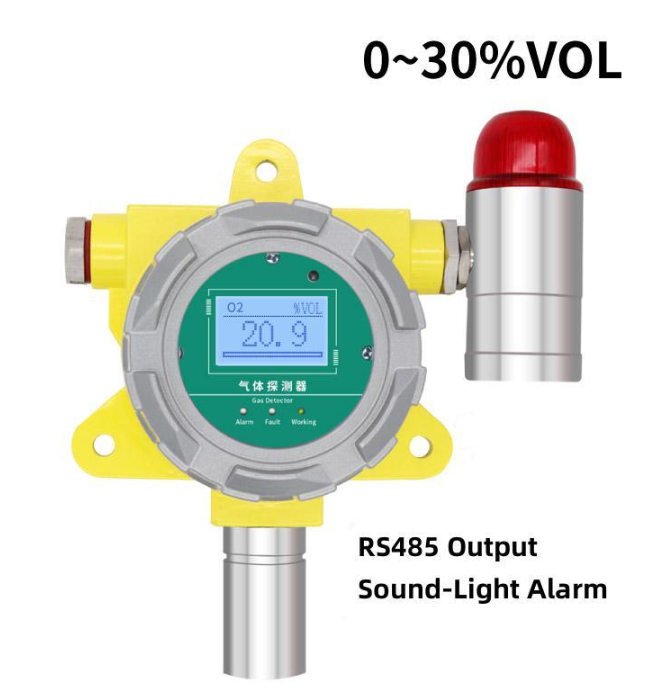

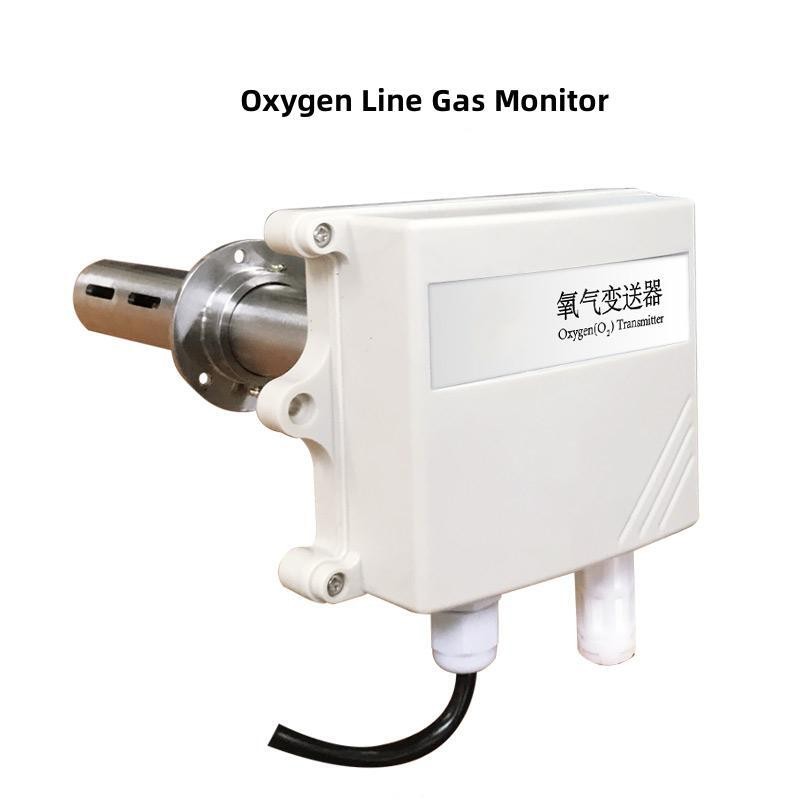

MULTIPLE HOUSING OPTIONS：

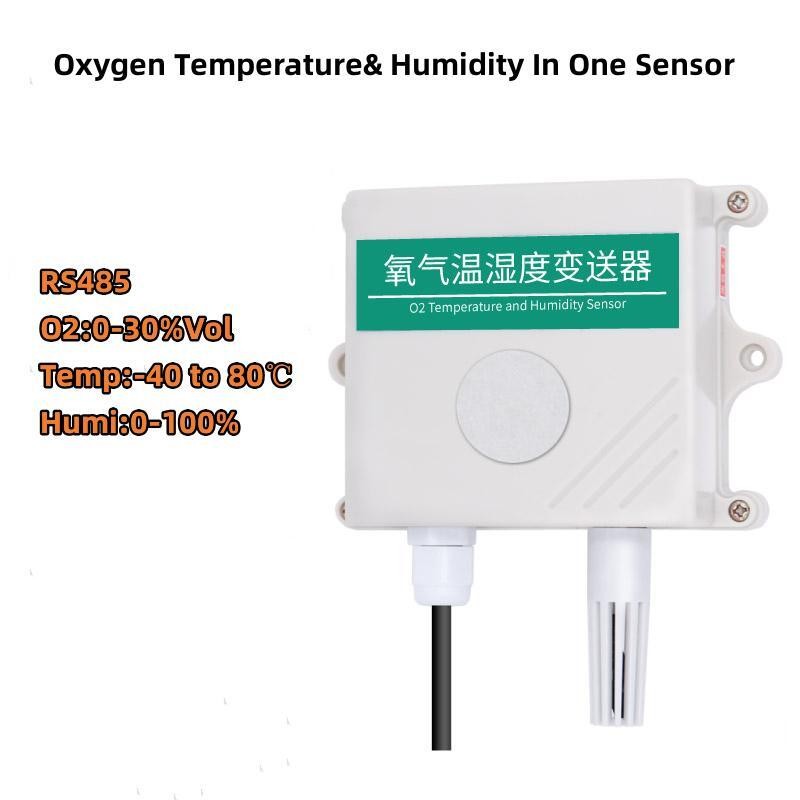

MULTIPLE GAS PRODUCTS：
CDW-16A SO2 Sensor CDW-12A CO2 Sensor
