Model :CDW-17A OEM/ODM: Available MOQ :1PCS Payment :T/T, L/C or Credit-card Lead Time: 5-7 days Certification :CE-EMC, CE-LVD, RoHS, ISO9001
PRODUCT OVERVIEW:

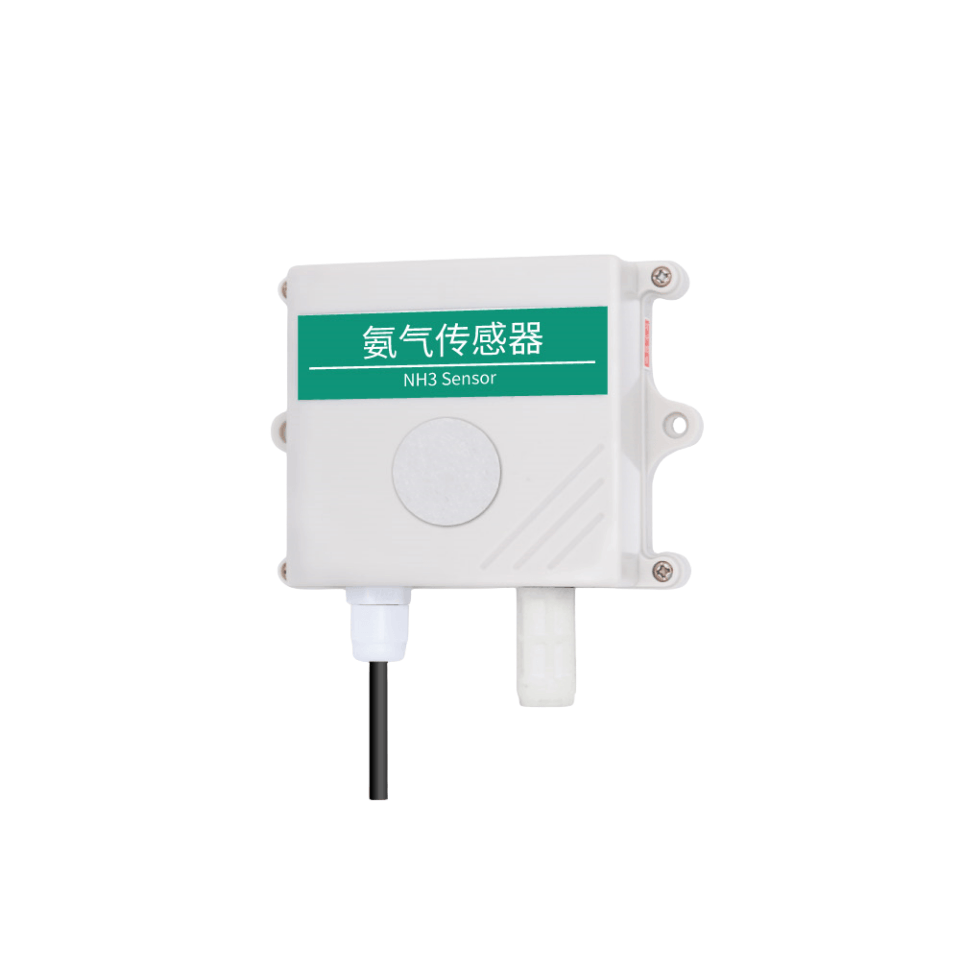

CDW-17A Support RS485/4-20mA/0-5V/0-10V/NB-IoT/LoRa/WIFI/ Ethernet and other signal output to meet different environmental requirements. Wireless transmission, no wiring, low power consumption, stable performance.
SPECIFICATIONS:
Item | Technical Specification |
Range(NH3 concentration) | 0-50ppm,0-100ppm,0-500ppm |
Accuracy(NH3 concentration) | ≤0.02%FS/℃ |
Resolution(NH6 concentration) | 0.1ppm |
Supply | 5VDC,12-24VDC |
Output | 4-20mA,0-5V,0-10V,RS485，Lorawan，4G,Ethernet |
Power Consumption | <0.25W |
Warm Up Time | 3min |
Response Time | <2s |
Repeatability | <±1%FS |
-20℃-+60℃@15-80%RH | |
Storage | -40-70℃@20%-90%RH |
Shell Material | ABS |
Installation | Wall-mounted |
ADDITIONAL FEATURES AND BENEFITS:
It is simple in structure, easy to install and maintain;

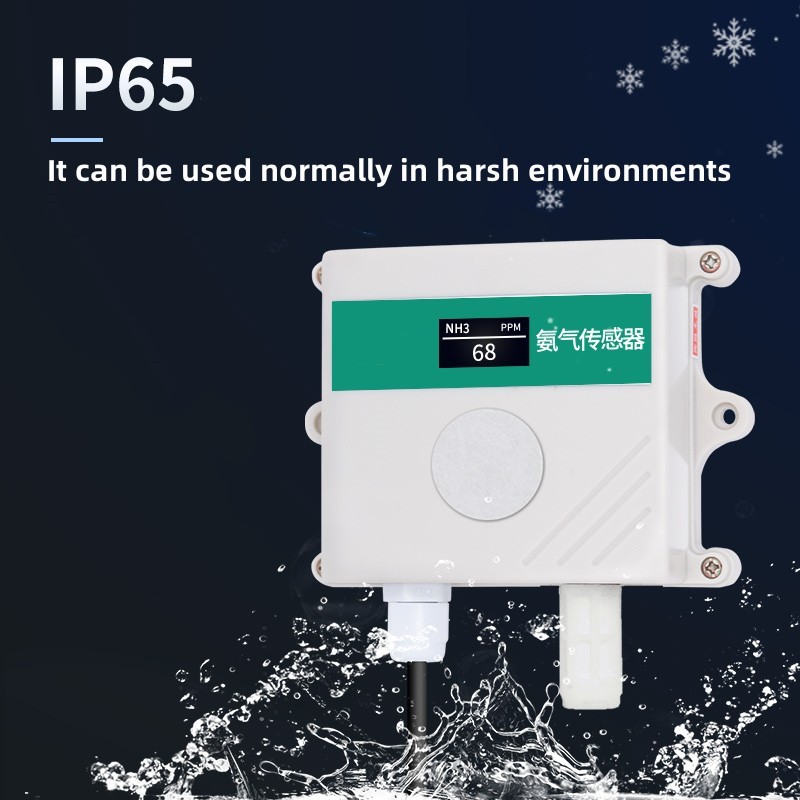

Good stability, can adapt to a variety of harsh environmental conditions;
The change of NH3 concentration can be quickly sensed and the measurement result can be given in time;
Low energy consumption, suitable for use in battery-powered or energy limited situations；
The general structure is relatively simple, and maintenance and calibration work is relatively easy to carry out；
MULTIPLE GAS PRODUCTS：
CDW-16A SO2 Sensor CDW-12A CO2 Sensor
