Model :CDT-70B OEM/ODM: Available MOQ :1PCS Payment :T/T, L/C or Credit-card Lead Time: 5-7 days Certification :CE-EMC, CE-LVD, RoHS, ISO9001
PRODUCT OVERVIEW:

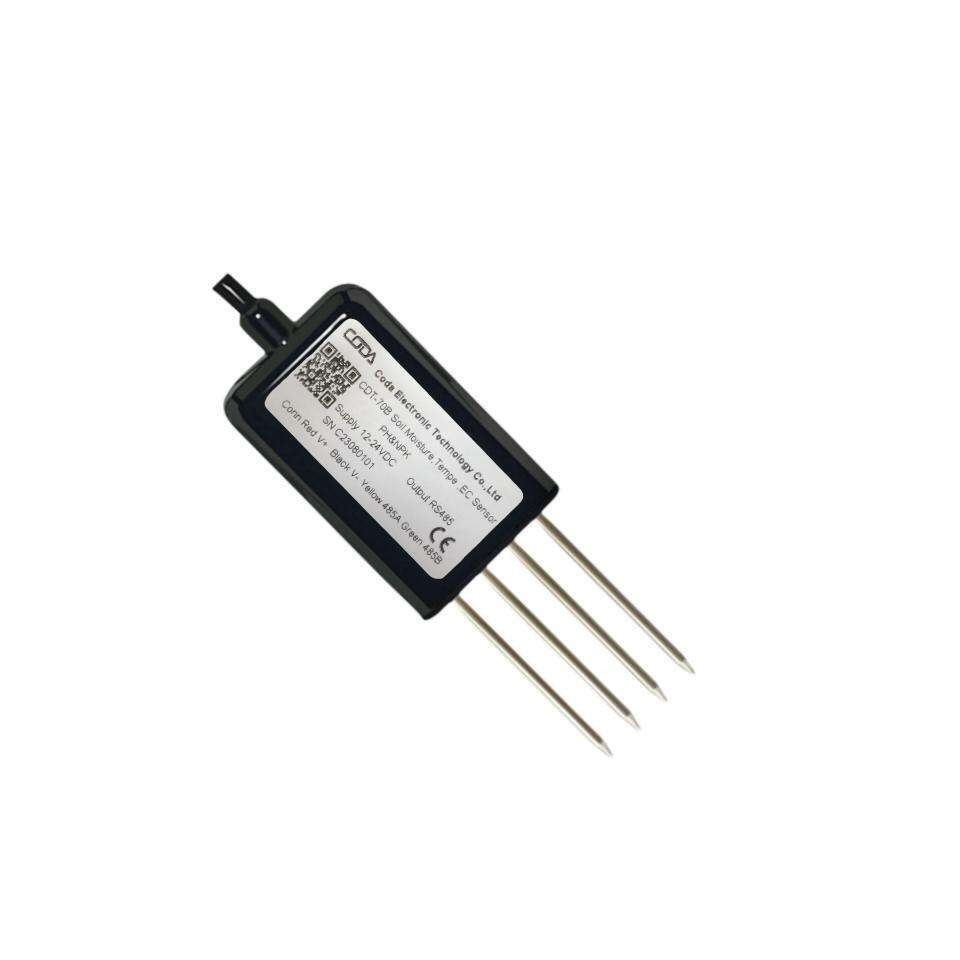

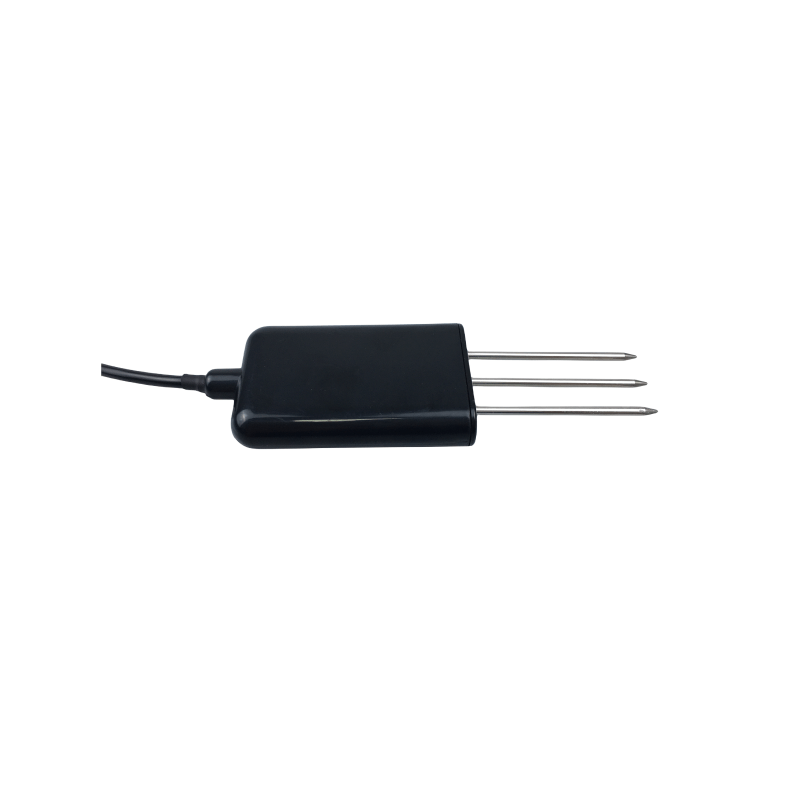

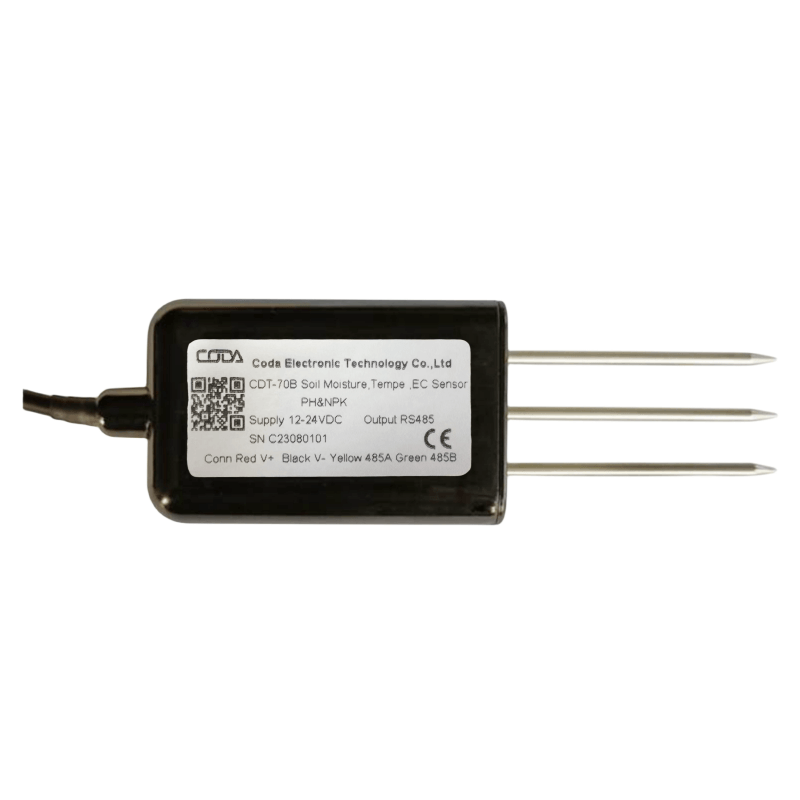

CDT-70B The Soil Temperature and Moisture Sensor integrates Soil Moisture and Soil Temperature and NPK&PH Sensors. It has the advantages of easy to carry, sealing, high precision, is the ideal choice of the soil moisture, soil temperature and NPK measurement.
SPECIFICATIONS:
Item | Technical Specification | ||||
Moisture | Temperature | EC | PH | NPK | |
Range | 0-100%（m3/m3） | -30℃-+70℃ | 0-10ms/cm 0-20ms/cm | 0-14 | 0-1999mg/kg |
Accuracy | ±2%(0-50%) ±3%(51-100%) | ±0.5℃ | ±3%FS | ±0.5 | ±3%FS |
Output Signal | RS485 | ||||
Response Time | <1s | ||||
Supply | 5VDC, 12-24VDC | ||||
Effective measurement area | With the center of the probe diameter is 70mm, high 70mm cylinder | ||||
Housing | ABS | ||||
Dimensions | 45*15*145mm( probe:3* Ø3*70mm) | ||||
Operating Temperature | -40℃-+80℃ | ||||
Ingress Protection | IP68 | ||||
Storage | 10-60℃@20%-90%RH | ||||
Probe material | 316L stainless steel | ||||
ADDITIONAL FEATURES AND BENEFITS:
It is simple in structure, easy to install and maintain;
Good stability, can adapt to a variety of harsh environmental conditions;
The change of soil npk concentration can be quickly sensed and the measurement result can be given in time;
Low energy consumption, suitable for use in battery-powered or energy limited situations；
The general structure is relatively simple, and maintenance and calibration work is relatively easy to carry out；
INSTALLATION AND SIZE：
CDT-70B SOIL NPK SENSOR USER MANUAL：
CDT-70B Soil NPK Sensor user manualv1.0.pdf
