Model :CDY-18B OEM/ODM :Available MOQ :1PCS Payment :T/T, L/C or Credit-card Lead Time :5-7 days Certification :CE-EMC, CE-LVD, RoHS, ISO9001
PRODUCT OVERVIEW:
CDY-18B Automatic Rainfall Station is used to measure and record the rainfall information. The display can show the real time rainfall value, with time & date. Large-capacity FLASH memory chips can automatically stored at least one year of meteorological data. The data logger is equipped with two types of communication interfaces (RS232 / RS485) which establish communication with the computer. Meteorological weather data can be further processed and analyzed by the data logger. The station can be equipped with CDY-10B or CDY-12A rainfall sensor.
SPECIFICATIONS:
Item | Specification |
Power supply | 12VDC(adapter AC110V-AC220V ),solar power,optional |
Measured rainfall intensity | Max: 4mm/min |
Resolution | 0.1mm,0.2mm,0.5mm,1mm optional |
Accuracy | <±4% |
Display | 64*14 LCD with back-light |
Storage capacity | 1min-240min adjustable |
Communication interface | RS232，RS485，USB optional |
Operating Temperature | -40℃-+75℃@5%-95%RH |
Install accessories | Tripod，data logger shelter,cable optional |
PC software | Attached |
Dimension | Data logger :165*125*75mm |
ADDITIONAL FEATURES AND BENEFITS:
It is simple in structure, easy to install and maintain;
Good stability, can adapt to a variety of harsh environmental conditions;
Low energy consumption, suitable for use in battery-powered or energy limited situations；
The general structure is relatively simple, and maintenance and calibration work is relatively easy to carry out；

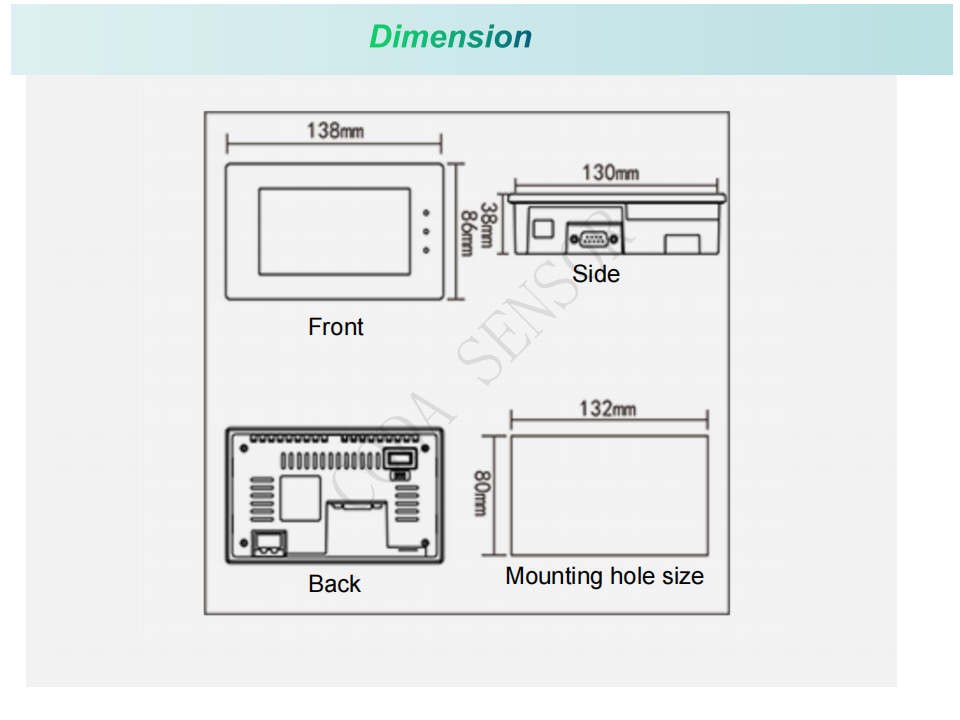

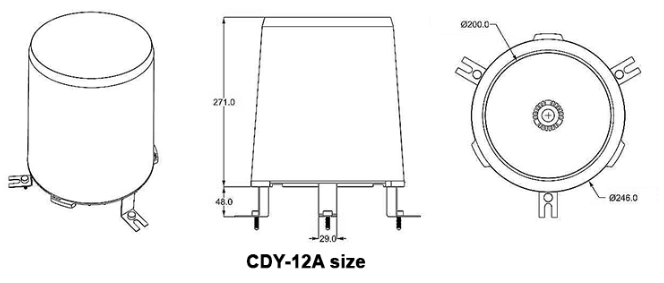

INSTALLATION AND SIZE：
MULTIPLE SENSOR PRODUCTS：
CDW-21A PM2.5 Sensor CDW-33A Air Temp&Humi&Pressure Sensor
