Model :CDP-11A OEM/ODM :Available MOQ :1PCS Payment :T/T, L/C or Credit-card Lead Time :5-7 days Certification :CE-EMC, CE-LVD, RoHS, ISO9001
PRODUCT OVERVIEW:

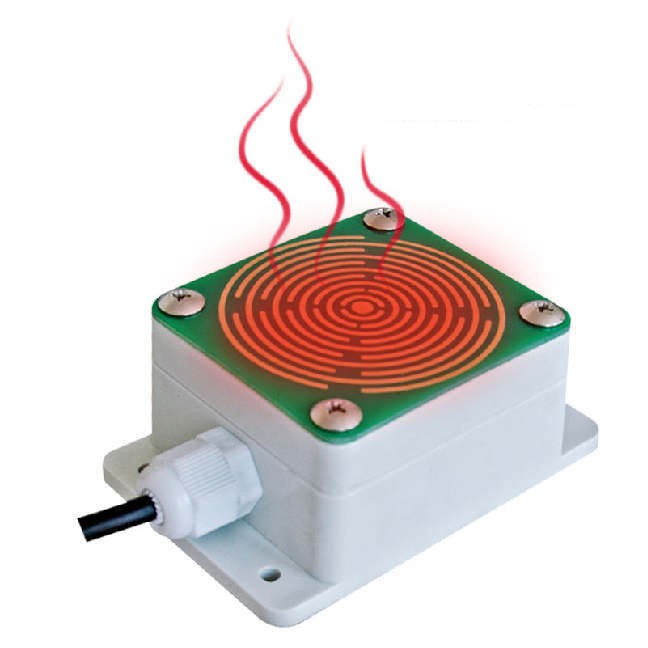

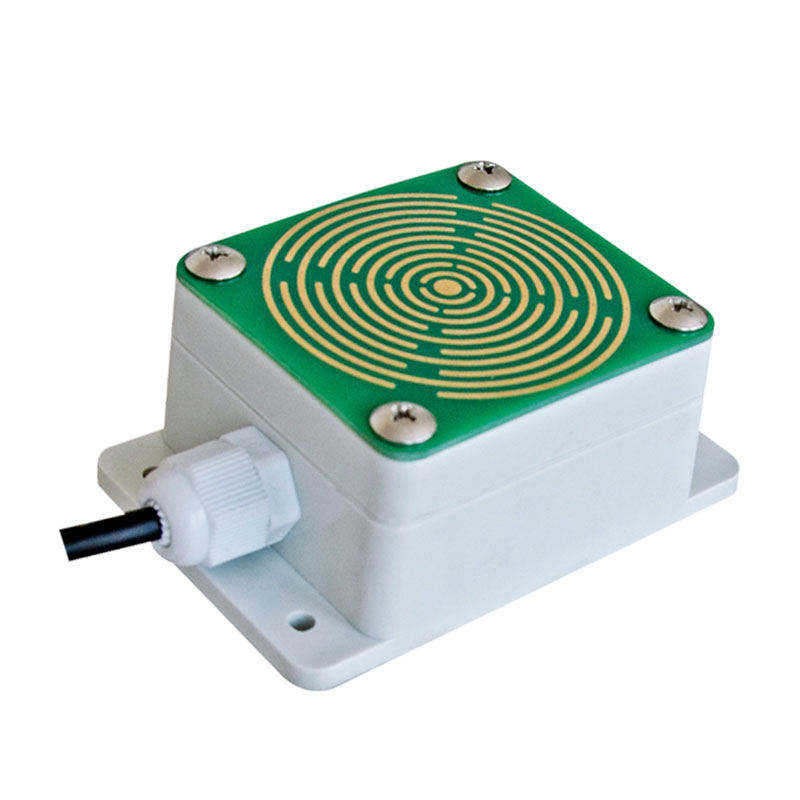

CDY-11A Rain & Snow Sensor is a high sensitive detector to achieve qualitative detection of rain and snow. There is a ring conductor sense rain board on the surface.Products are optional automatic melting snow and melting ice function (automatic heating).When it rains or snows, it will output switch signal.
SPECIFICATIONS:
Item | Specifications |
Supply Voltage | 12-24VDC |
Automatic heating | heating power:10W max. |
Output | Relay(NO) |
Load Capacity(relay) | AC120V/2A ,DC24V/2A |
Coil material | Gold-plated(Strong corrosion resistance) |
Ingress protection | IP67 |
Operating Temperature | -30℃-+70℃ |
Weight(unpacked) | 150g |
Dimension | 90*60*40mm |
Shell material | ABS |
Storage Condition | 10℃-60℃@20%-90%RH |

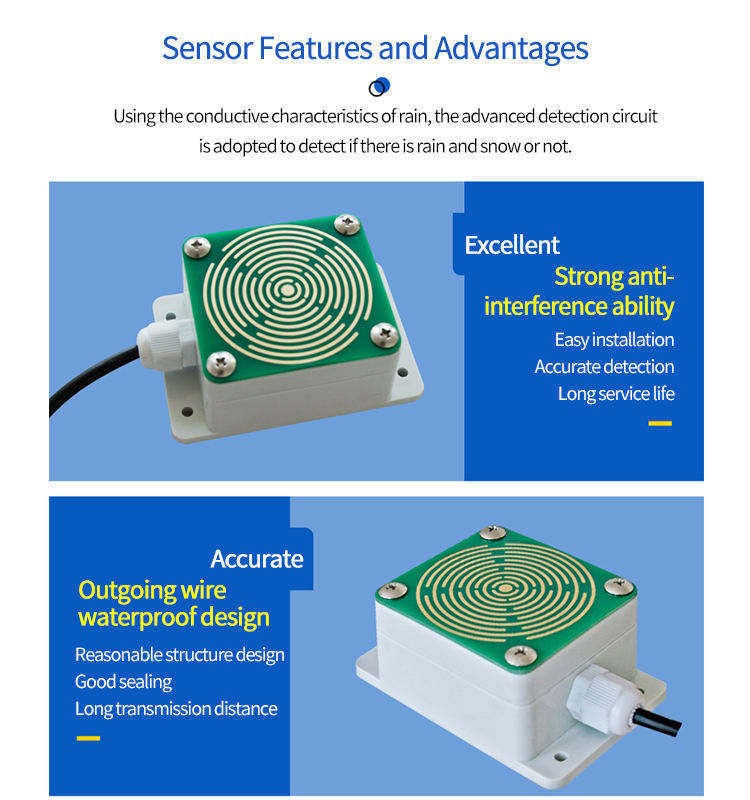

ADDITIONAL FEATURES AND BENEFITS:
It is simple in structure, easy to install and maintain;
Good stability, can adapt to a variety of harsh environmental conditions;
Low energy consumption, suitable for use in battery-powered or energy limited situations；
The general structure is relatively simple, and maintenance and calibration work is relatively easy to carry out；

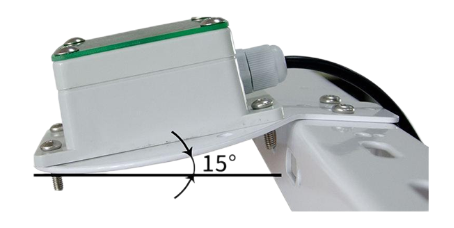

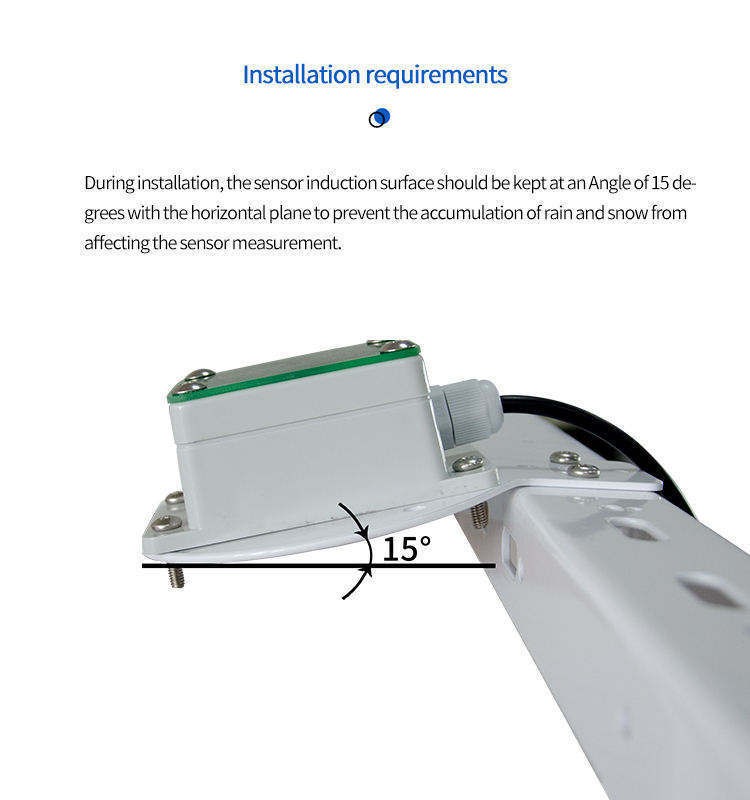

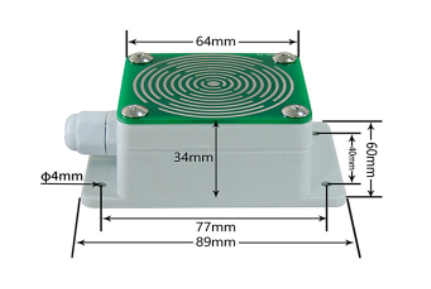

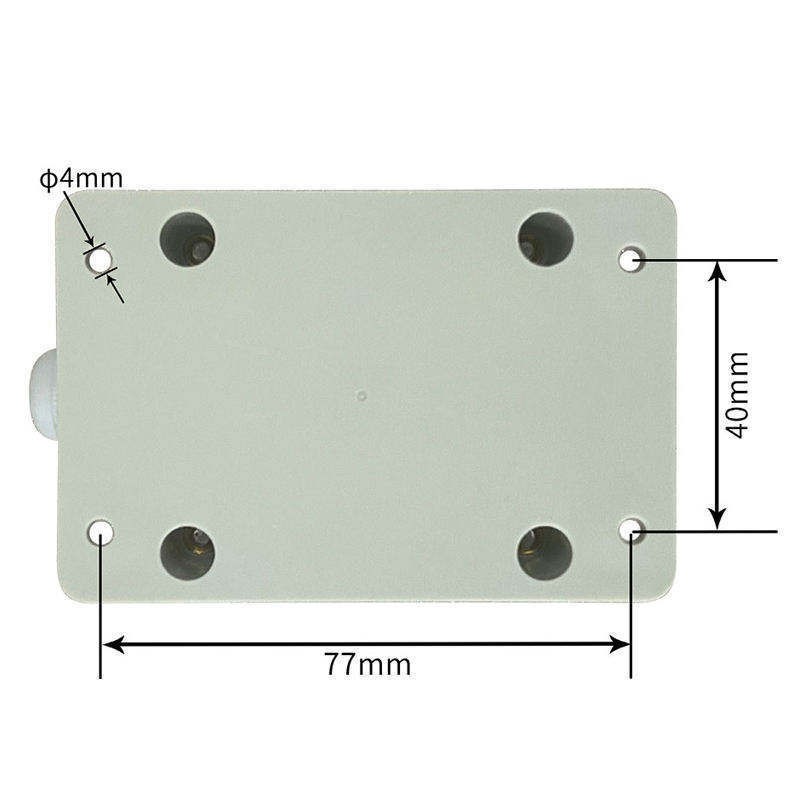

INSTALLATION AND SIZE：
CDY-11A RAIN&SNOW SENSOR USER MANUAL：
CDY-11A rain & snow sensor user manualv2.0.pdf
MULTIPLE SENSOR PRODUCTS：
CDY-12A Rain Sensor CDY-14B Evaporation Sensor
