PRODUCT OVERVIEW:

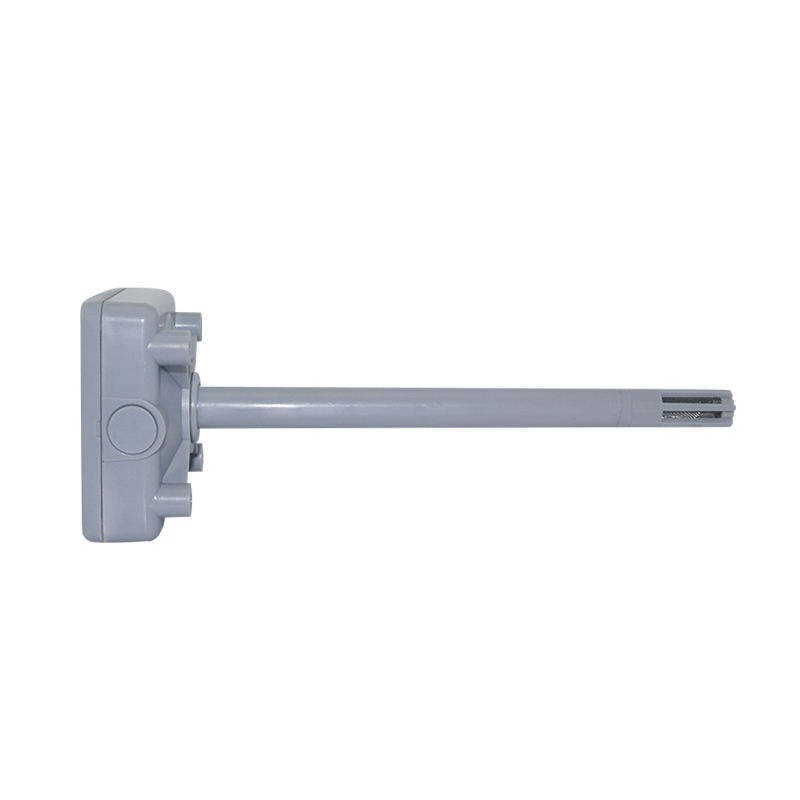

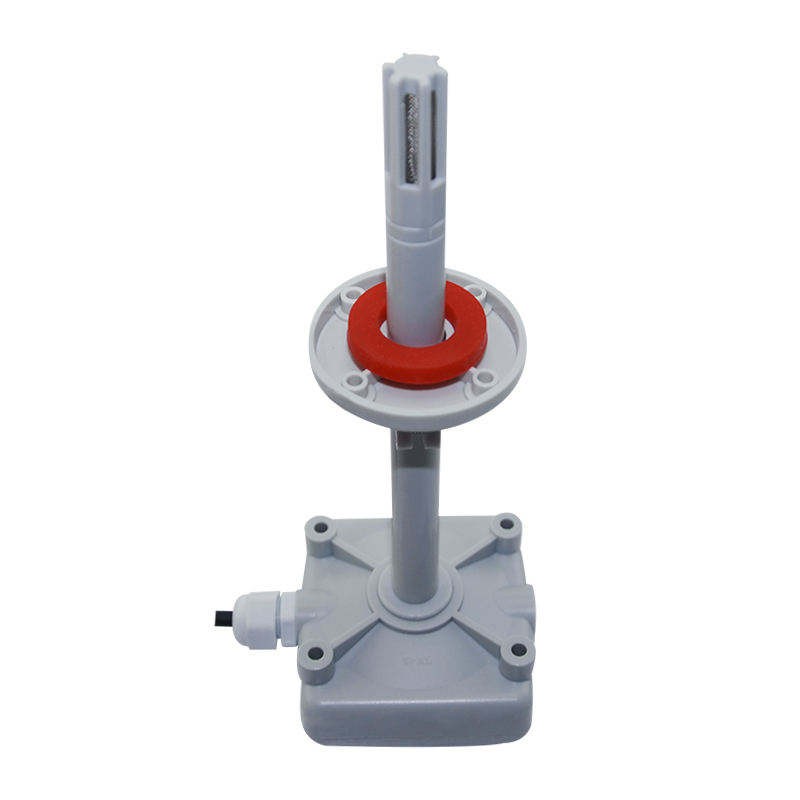

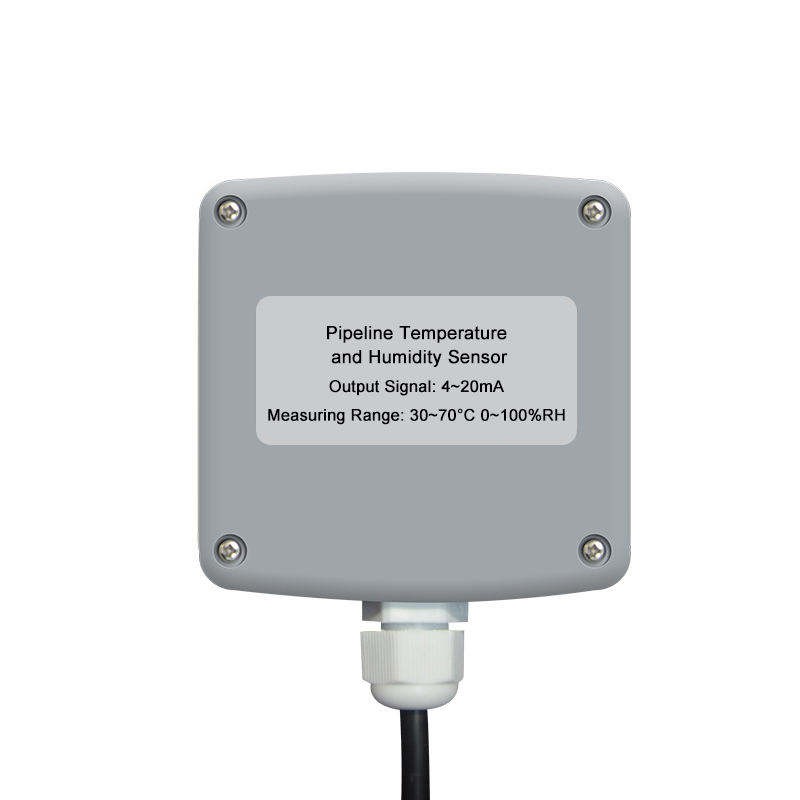

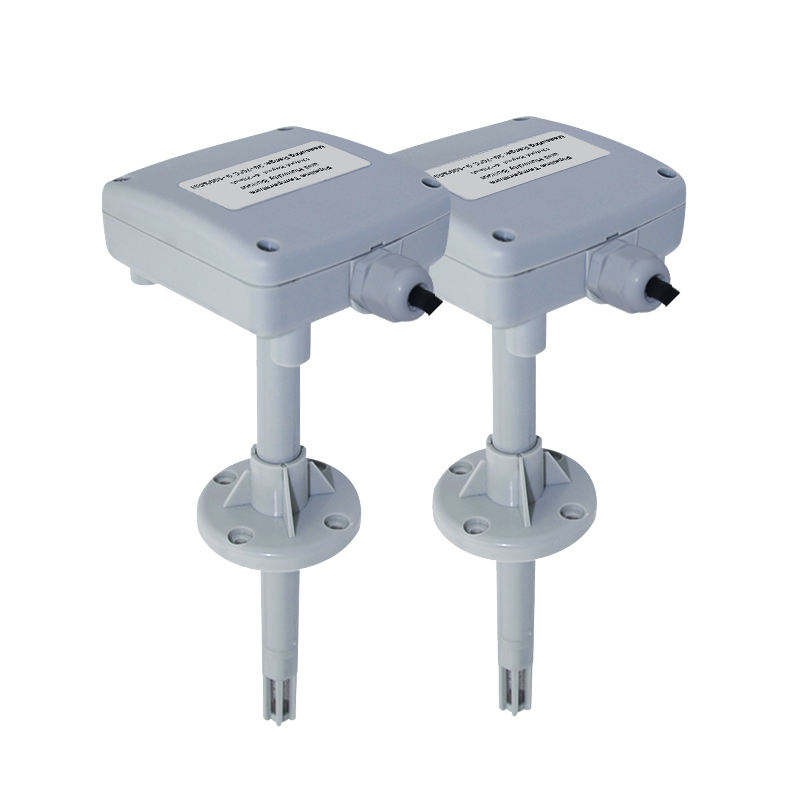

CDW-24A HVAC Temperature & Humidity Sensor is a professional measurement of air temperature& relative humidity. Sensors are built-in the water-proof and dust-proof shelter. It is widely used inHVAC, storage and environment monitoring field.
SPECIFICATIONS:
Item | Technical Specification | |
| Temperature | Humidity | |
Range | -40-125℃(intermediate range is optional) | 0-100%RH |
Accuracy | ±0.2℃ | ±2%RH,±3%RH,±5%RH |
Supply | 12-24VDC | |
Output Signal | 4-20mA,0-5V,0-10V,RS485 MODBUS(RTU) | |
Power Consumption | Current output:≤0.48W, Voltage output:≤0.2W, Digital output:≤0.36W | |
Load Characteristic | Current output:RL≤(US-7)/0.02Ω, Voltage output:RL≥100kΩ | |
Operating Temperature | -40℃-+80℃ | |
Ingress Protection | IP65 | |
Storage | 10-60℃@20%-90%RH | |
ADDITIONAL FEATURES AND BENEFITS:
It is simple in structure, easy to install and maintain;
Good stability, can adapt to a variety of harsh environmental conditions;
The change of HAVC temperature concentration can be quickly sensed and the measurement result can be given in time;
Low energy consumption, suitable for use in battery-powered or energy limited situations；
The general structure is relatively simple, and maintenance and calibration work is relatively easy to carry out；

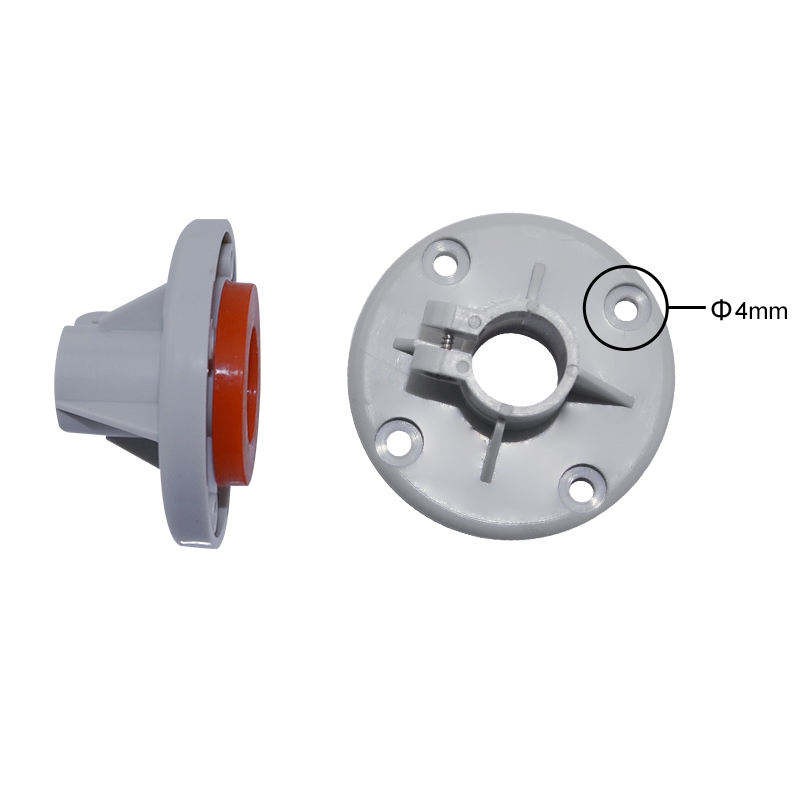

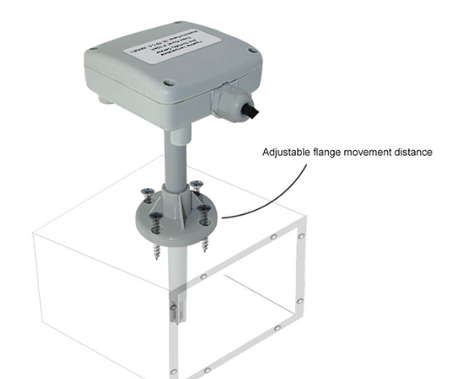

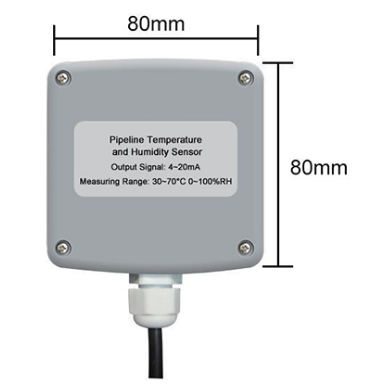

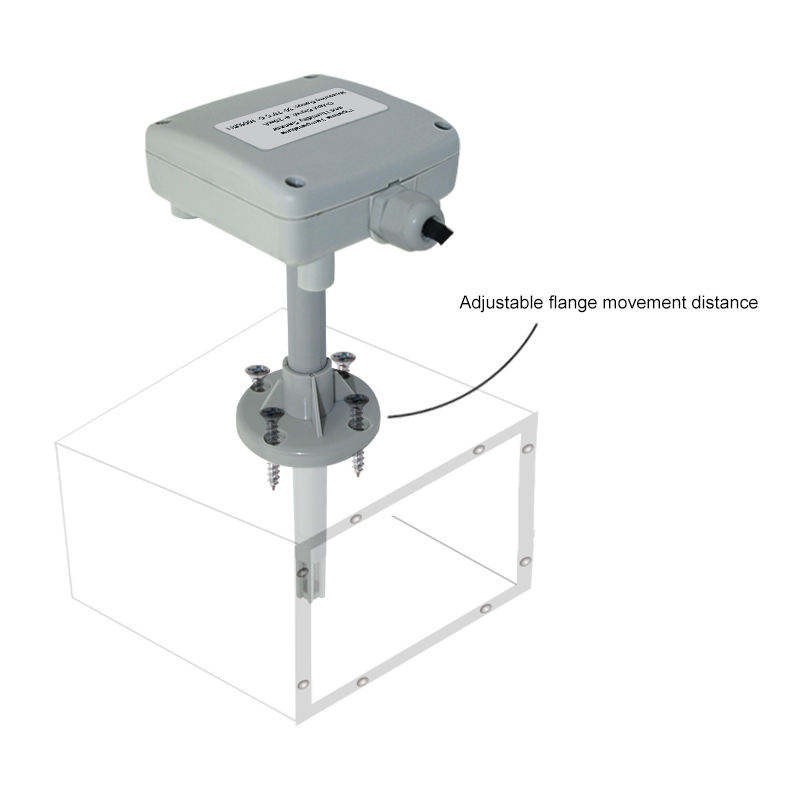

INSTALLATION AND SIZE：
MULTIPLE SENSOR PRODUCTS：
CDW-21A PM2.5 Sensor CDW-33A Air Temp&Humi&Pressure Sensor
