Model :CDG-14A OEM/ODM :Available MOQ :1PCS Payment :T/T, L/C or Credit-card Lead Time :5-7 days Certification :CE-EMC, CE-LVD, RoHS, ISO9001
PRODUCT OVERVIEW:

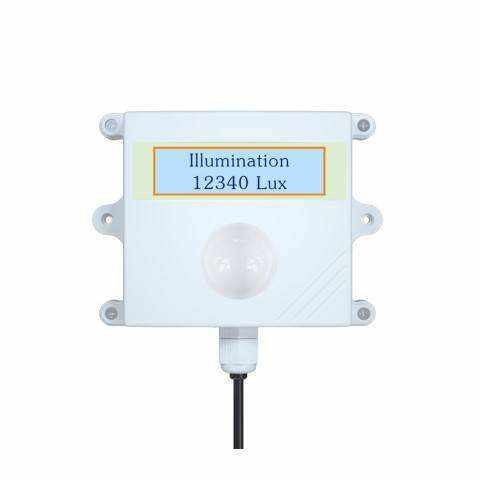

CDG-14A Illuminance Sensor is very sensitivity and can detect weak light,has a wide measuring range, high accuracy, good waterproof performance,easy to use, easy to install. It’s suitable for most applications, especially in agricultural greenhouses, urban lighting and other places.
SPECIFICATIONS:
Item | SPECIFICATIONS |
Range | 0-2000lux,0-20klux,0-200klux optional |
Spectral range | 380-780nm |
Supply | 5VDC,12-24VDC |
Output | 4-20mA,0-5V,0-10V,RS485 |
Accuracy | ±5%FS |
Response time | 1s |
Temperature effect | ±0.2%/℃ |
Repeatability | <1%FS |
Operating temperature | -40℃-+75℃ |
Weight(unpacked) | 170g |
Shell material | ABS,metal shell can be customized |
Display | LCD optional(ABS housing) |
ADDITIONAL FEATURES AND BENEFITS:
Small size, light weight, easy to carry and install;
Whether it is an indoor environment such as offices, factories, or an outdoor environment such as parks, roads, etc., it can be effectively measured;
Under different environmental conditions such as temperature and humidity, it can maintain stable measurement performance and reduce errors；
It can be easily integrated with other systems and equipment to form a comprehensive monitoring and control system；
It can accurately measure the value of illuminance and provide accurate data for various scenarios requiring precise illumination control

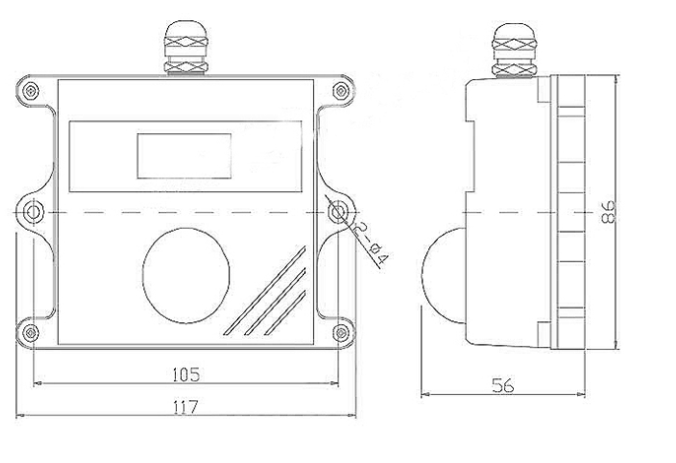

INSTALLATION AND SIZE：
CDG-14A IllUMINANCE SENSOR USER MANUAL：
CDG-14A illuminance sensor user manualv2.0.pdf
MULTIPLE SENSOR PRODUCTS：
CDG-11B Pyranometer Radiation Sensor CDG-12B PAR Sensor
