Coda Environmental Sensors: A Comprehensive Solution

In modern environmental monitoring and smart city development, data accuracy is paramount. Coda offers a full suite of environmental sensor solutions that cover everything from wind speed and solar radiation to temperature, humidity, and rainfall. This article will delve into Coda's core products and, using real-world case studies, demonstrate how they transform raw data into valuable insights.

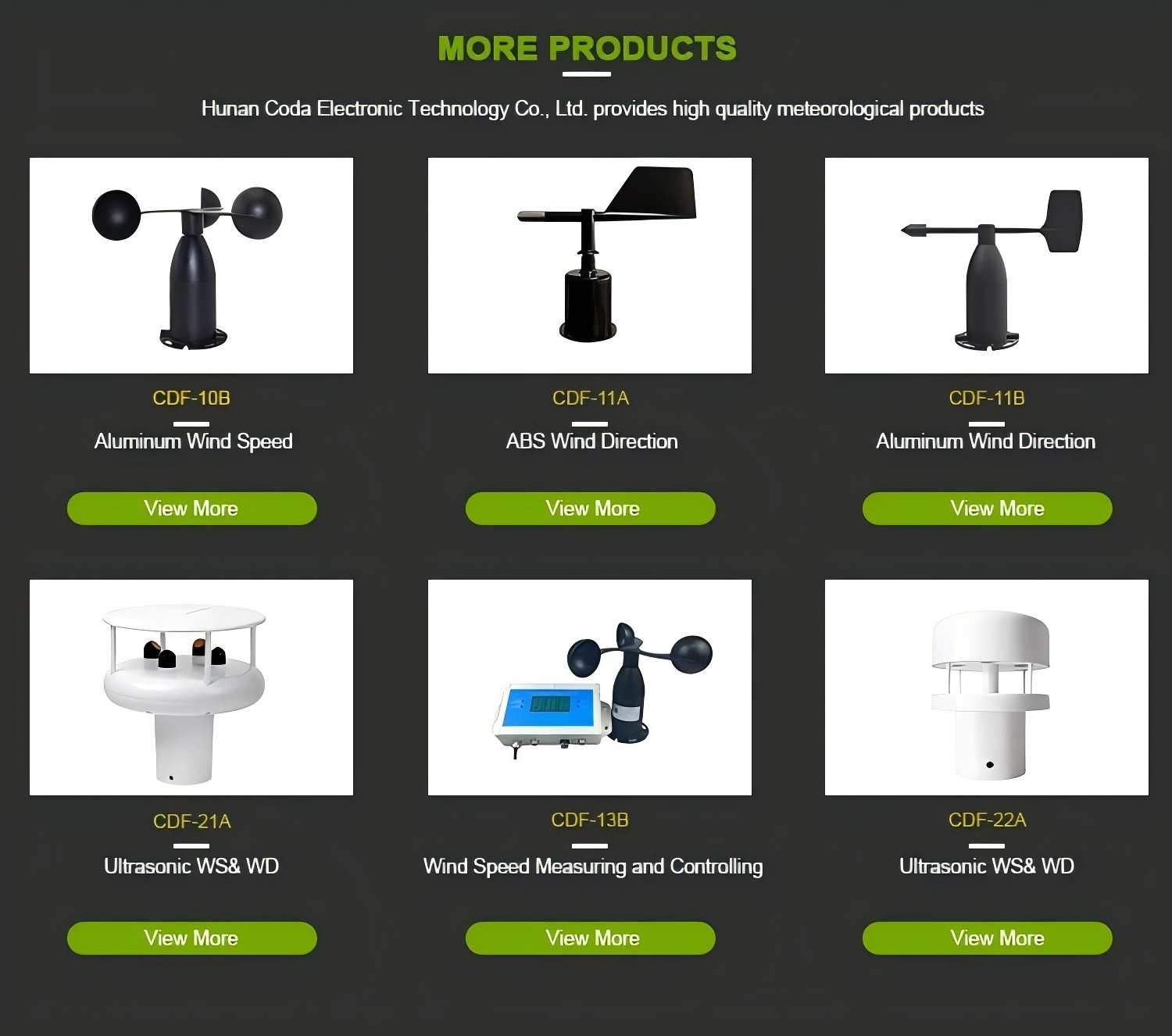

Wind Speed and Direction Sensors: Guardians of Growth

Coda's CDF series of sensors are essential in the field of wind monitoring. They're not just for weather forecasting; they play a critical role in agriculture and industry.

• CDF-10A Wind Speed Sensor: This sensor features a classic three-cup design. Its carbon fiber cups give it an extremely low starting threshold ($\le 0.8m/s$) and excellent corrosion resistance.

  Application Case: In a smart agriculture project, multiple CDF-10A sensors were installed in different areas of an orchard. When wind speed exceeded a set threshold, the sensors would immediately send data via an RS485 interface to a control system. For example, if the wind speed continuously exceeded , the system would automatically activate protective measures, such as spraying a wind-resistant agent or deploying wind nets, effectively protecting crops from strong winds and ensuring fruit yield and quality.

• CDF-21A/22A Ultrasonic Wind Sensors: Unlike traditional mechanical sensors, these devices have no moving parts and use ultrasonic technology for measurement. This makes them exceptionally reliable in harsh environments (such as high-altitude, salt spray, or sandy regions) and virtually maintenance-free.

  Application Case: In a coastal port, accurate wind monitoring is crucial for the safe docking and departure of ships. A CDF-21A ultrasonic sensor was installed on a tower at the port. It provided real-time data on wind speed and direction (for example, wind speed $5m/s$, wind direction southwest). This data was transmitted via Modbus protocol to the port's management center. Administrators could then use the live data to adjust ship schedules, significantly improving operational efficiency and safety.

Solar Radiation Sensors: The Barometer of Energy and Agriculture

The CDG-10B Solar Radiation Sensor is a specialized pyranometer or irradiance sensor based on the silicon-cell principle, designed to accurately measure the sun's energy.

• CDG-10B Solar Radiation Sensor: This sensor measures within a broad spectral range of $300-1100nm$, with a range of $0-1500W/m^2$ and a resolution of $1W/m^2$.

  Application Case: At a large-scale solar power plant, CDG-10B sensors were installed next to the photovoltaic arrays. They continuously monitored solar irradiance, for example, recording a specific moment's irradiance at $1200W/m^2$. This helped operators assess the real-time efficiency of the solar panels. By collecting long-term irradiance data, operators could build predictive models to accurately estimate future power generation, optimizing electricity dispatch and trading. Additionally, in greenhouses, this data helps farmers precisely control light levels, providing optimal conditions for crop photosynthesis.

Integrated Environmental Monitoring Solutions: Fusing Multidimensional Data

Coda's product portfolio makes it easy to build a comprehensive environmental monitoring network, integrating data from different types of sensors.

• CDY-12A Economical Tipping Bucket Rainfall Sensor: This pluviometer or rain gauge measures rainfall using a tipping bucket mechanism. Each tip of the bucket represents a precise amount of rain.

  Application Case: In an urban drainage system, CDY-12A sensors were installed in low-lying areas. When the rainfall reached $1mm$, the sensor would produce a pulse signal. By counting the number of pulses per unit of time, the system could monitor the rainfall intensity in real-time. For example, if it received 30 pulses in one hour, it meant the rainfall was $30mm/h$. The system could then issue an early flood warning to residents and activate drainage pumps, effectively preventing urban flooding.

• CDQ-T6A Miniature Ultrasonic Automatic Weather Station: This is an all-in-one weather station that integrates wind speed, wind direction, temperature, humidity, and pressure. All data is output through a single RS485 interface.

  Application Case: In a smart community project, a CDQ-T6A was installed on top of a community park building. It continuously collected and sent real-time environmental data, such as a temperature of $25^{\circ }C$, 60% humidity, and a wind speed of $2m/s$. This data was used in a community app to provide residents with accurate weather information and to adjust the operation of public facilities (like irrigation systems) based on environmental conditions, truly connecting environmental monitoring with daily life.

Conclusion

From the precise measurements of individual sensors to the system-level solutions of a multi-sensor network, Coda's products provide reliable data support for a wide range of industries. This data is not just a collection of numbers; it is the key to understanding and managing our environment, optimizing production, and improving our quality of life.
