Types of Anemometers for Wind Speed Measurement

Wind plays a crucial role in shaping the weather, affecting agriculture, aviation, construction safety, and even energy production. To study and harness the power of wind effectively, we rely on tools known as anemometers. These devices are used to accurately measure wind speed, and in many cases, wind direction as well.

Whether you're operating a rooftop weather station, managing a wind farm, or conducting environmental research, selecting the right type of anemometer is essential. In this guide, we’ll explore the three main types of anemometers: cup anemometers, vane anemometers, and ultrasonic anemometers. We'll look at how each works, where they are best applied, and how they differ in performance and design.

What Are Anemometers and Why Are They Important?

At their core, anemometers measure wind speed. Some advanced models also determine wind direction, temperature, and even turbulence. These measurements are essential in weather forecasting, aviation safety, marine navigation, and renewable energy. By analyzing wind data, professionals can predict storms, optimize turbine performance, ensure crane safety, and monitor climate change patterns.

Choosing the right anemometer involves understanding the working principles of the different types—especially when trying to accurately measure wind characteristics in real time and across various environments.

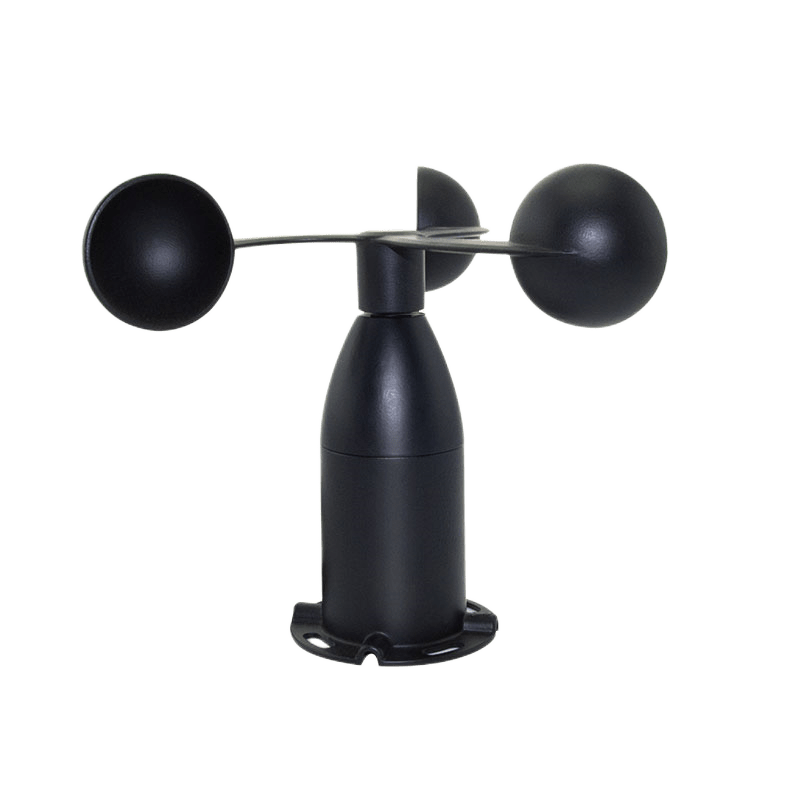

1. Cup Anemometers: Reliable and Time-Tested

Cup anemometers are the most recognizable and traditional type. They consist of three or four small cups mounted at equal angles on arms that rotate around a central axis. As the wind blows, it catches in the cups, causing them to spin. The rotational speed is directly related to the wind velocity.

These instruments are simple, durable, and widely used in meteorology. Their rugged design makes them well-suited for long-term outdoor use, especially in mechanical anemometers setups like rooftop weather stations or agricultural fields. They are often installed in high locations to reduce wind blockage and turbulence from nearby objects.

While cup anemometers provide reliable data, they only measure wind speed—not direction. They also rely on moving parts, which can wear down over time, especially in dusty, icy, or salty environments. Despite these limitations, they remain a staple in many meteorological and commercial applications due to their cost-effectiveness and ease of installation.

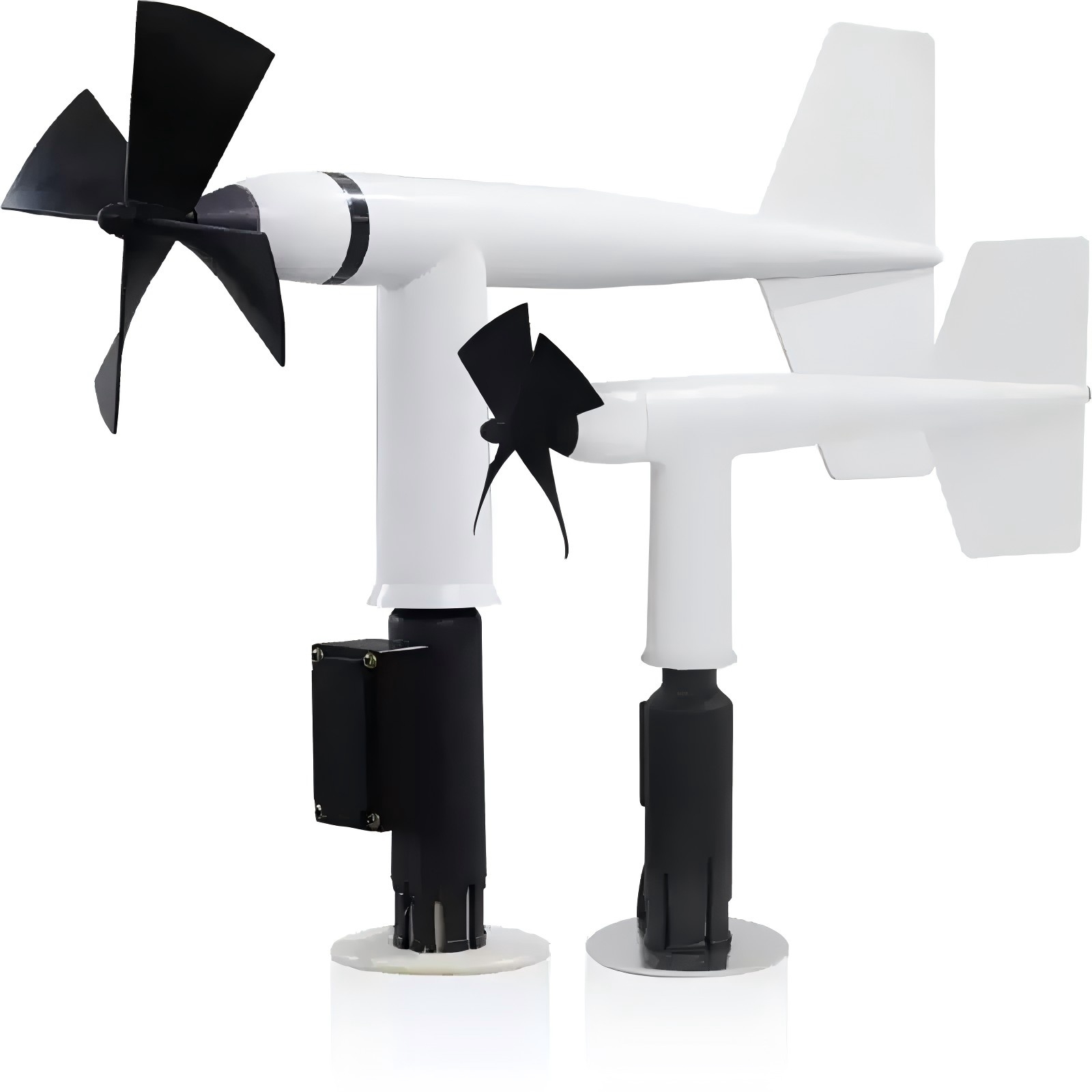

2. Vane Anemometers: Measuring Both Wind Speed and Direction

The vane anemometer combines a propeller or fan with a tail vane that orients the instrument into the wind. As air flows through the fan, the blades rotate, and this rotation is used to determine wind speed. The vane at the back ensures the sensor is always aligned with the wind, which makes it capable of measuring wind direction as well.

Vane anemometers are available in both portable and fixed configurations. Handheld models are commonly used by HVAC technicians to measure airflow in ventilation systems or by researchers conducting field studies. Larger, mountable vane anemometers are also used in agriculture, construction, and outdoor air quality monitoring.

Because vane anemometers have moving parts, they fall under the category of mechanical anemometers. They require occasional calibration and maintenance to maintain precision. However, they offer the advantage of two-in-one functionality—measuring both wind speed and direction. Their lightweight design also makes them ideal for mobile applications where ease of use is important.

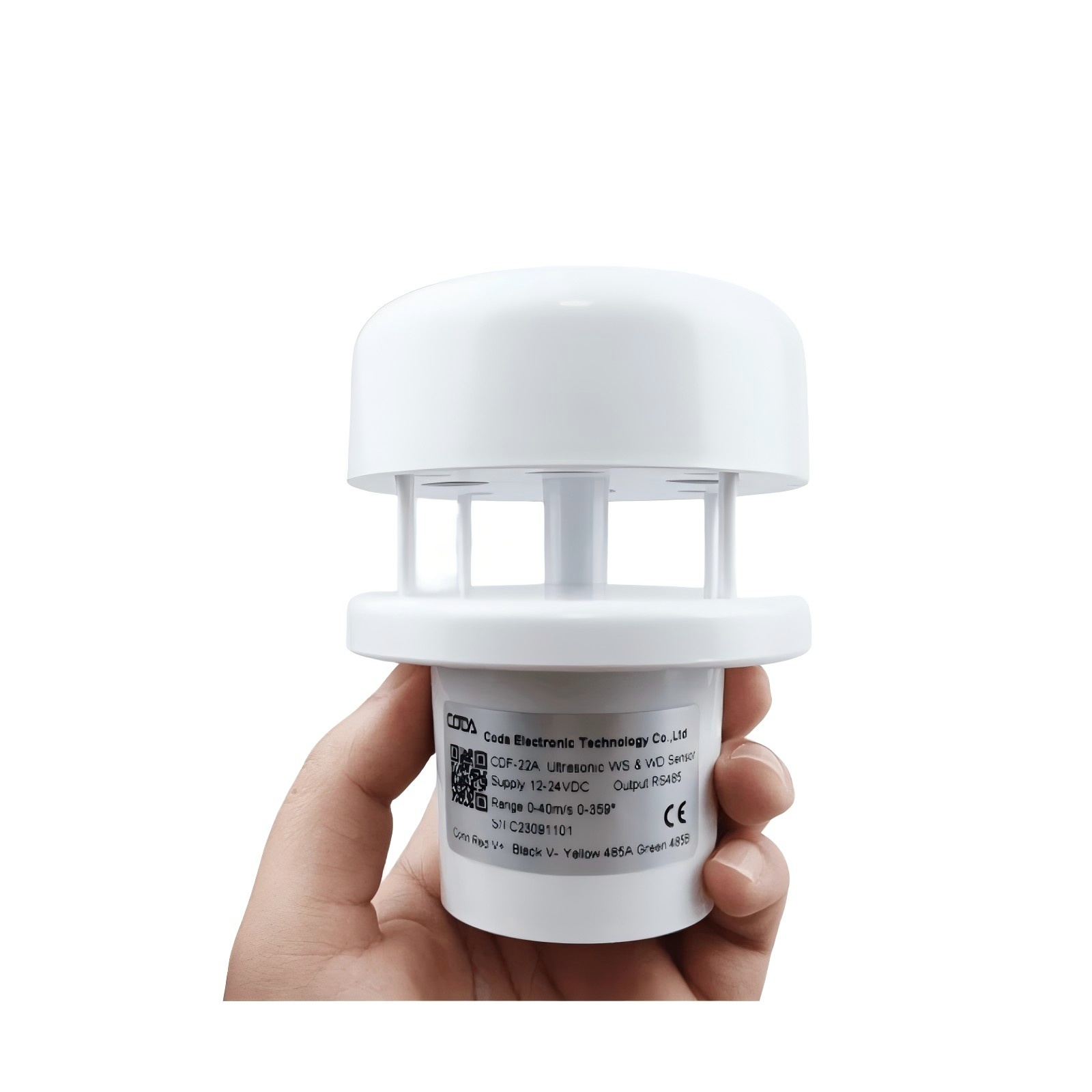

3. Ultrasonic Anemometers: Precision Without Moving Parts

The ultrasonic anemometer represents a more modern and advanced class of wind sensors. Instead of mechanical components, it uses sound waves to determine wind speed and direction. These devices typically have two or more pairs of transducers that send ultrasonic pulses across open paths. Wind affects the time it takes for the pulses to travel between the sensors. By comparing these travel times in multiple directions, the instrument calculates accurate wind speed and direction.

One of the most important benefits of an ultrasonic anemometer is that it has no moving parts. This significantly reduces maintenance requirements and enhances durability, especially in extreme environments such as offshore platforms, mountaintops, or polar regions. The design also allows for rapid, real-time data updates, making ultrasonic models suitable for high-precision applications like airport wind monitoring or scientific research stations.

Although ultrasonic anemometers are more expensive than mechanical anemometers, they deliver exceptional performance in terms of reliability, accuracy, and lifespan. They can operate in conditions where traditional sensors might fail, including high humidity, freezing temperatures, or locations with frequent wind direction shifts.

How to Accurately Measure Wind: Factors to Consider

No matter which type of anemometer you use, obtaining accurate wind measurements depends on several key factors:

• Installation height and placement: Mounting the device at the recommended height and away from buildings or trees minimizes wind disturbance.

• Calibration and maintenance: Especially for mechanical units like cup or vane anemometers, periodic checks ensure data remains accurate.

• Sensor resolution and data frequency: Ultrasonic anemometers generally provide more granular and real-time data, which is crucial for high-stakes environments.

• Environmental exposure: Harsh weather, salt, dust, and insects can affect mechanical models more than ultrasonic ones.

• Power supply and data output: For remote applications, consider solar-powered units or models that transmit via RS485, Modbus, or wireless protocols.

The goal is always to accurately measure wind characteristics that are meaningful for the specific task—whether that's turbine control, weather alerts, ventilation performance, or scientific analysis.

Which Anemometer Should You Choose?

If you need a basic and robust solution for long-term outdoor use, the cup anemometer is a solid and affordable option. It’s ideal for agricultural fields, rooftop weather stations, or simple commercial applications where only wind speed is needed.

If your work requires mobility or you're performing indoor airflow testing, the vane anemometer is a better fit. Its dual functionality—measuring both wind speed and direction—makes it a popular choice for technicians and mobile field researchers.

For the most accurate, maintenance-free, and advanced performance, especially in extreme or mission-critical conditions, the ultrasonic anemometer is unmatched. Though it has a higher upfront cost, it pays off with superior durability and precision.

Final Thoughts

In summary, anemometers are vital tools used across many industries to accurately measure wind speed and direction. Whether you're monitoring rooftop weather, conducting field research, or operating a wind energy system, understanding the differences between mechanical anemometers and ultrasonic anemometers helps you choose the right tool for the job.

Each type has its own strengths: the simplicity of the cup anemometer, the dual-purpose function of the vane anemometer, and the precision of the ultrasonic anemometer. Choosing the right one ensures that your wind measurements are accurate, reliable, and fit for purpose.

Coda Sensor offers a full range of professional wind monitoring devices, from economical cup models to advanced ultrasonic solutions. Reach out to us today for expert guidance and tailored recommendations for your project needs.
